EuroXciser

DERBIE SERIES

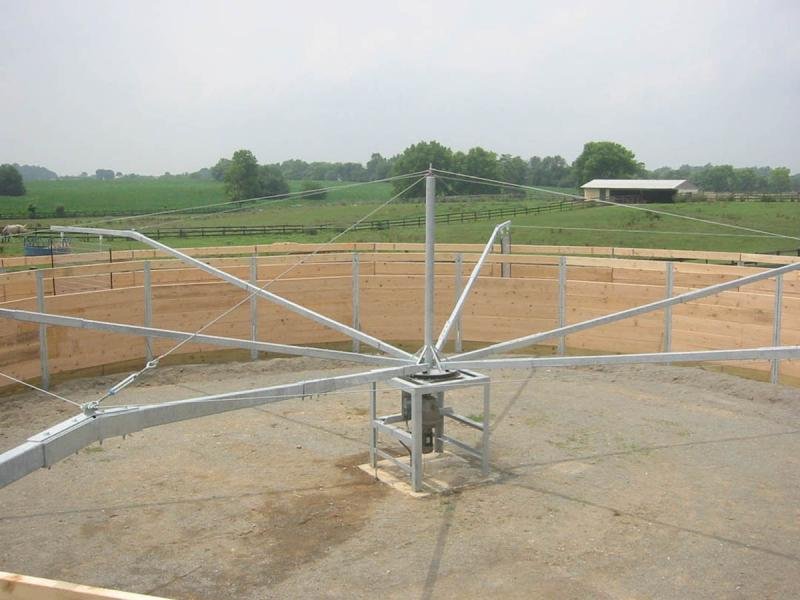

• Hot dipped galvanized frame made of structural steel.
• Maintenance free & silent AC gear/motor with direct drive (No Belts & No Chains).
• Heavy Duty large turn table bearing (Made in Germany).
• Arms and partitions mounted on hinges for flexibility and safety.
• Electrical fencer operated from gate.
• Emergency stop on controllers.
• Full rubber partitions (option) for maximum safety and reliability.
• Pre-programmed controller (option) which is more reliable and easier to use.

*   These  gear/motor  units  have been designed in Germany and are made in the  USA.   The  UNICASE  TM  design eliminates all risk of oil leaks and make these units  virtually maintenance free.

More details at www.nord.com

*   These  gear boxes  use high quality Shell Oil  for  use  in  extreme weather conditions.
* These gear boxes are equipped with high load shaft bearings.
*  The A/C  motors along with the high quality  gearing  make these  units run silent,  run cool  & are energy efficient.
* The direct drive is made possible via a special coupling designed in France which  can  take  misalignments & can absorb shocks.

No more belts or chains to adjust or replace!

 Specifications

Number of horses:
Comes in 4, 5, 6 horse configuration
Dimensions:
Stock sizes 60’, 65’ & 72’ diameter.
Custom sizes available at no extra charge.
Height at center under 11’(Easy to fit indoor).
Standard 8’ wide exercise area.
Partitions: (See partitions page)
7’ wide by 5’ to 6’ high.
Speed:
From 0 to 20+Mph
Motors:
1 1/2HP  A/C motor or 2HP (option)

(2HP motor is stock on 72’ units)

Controllers: (See controllers page )
Manual or Pre-programmed (option)
Warranty:
10 yrs frame,3 yrs Gear/motor,1 yr  electricals


(Large turn table bearing made in Germany)
